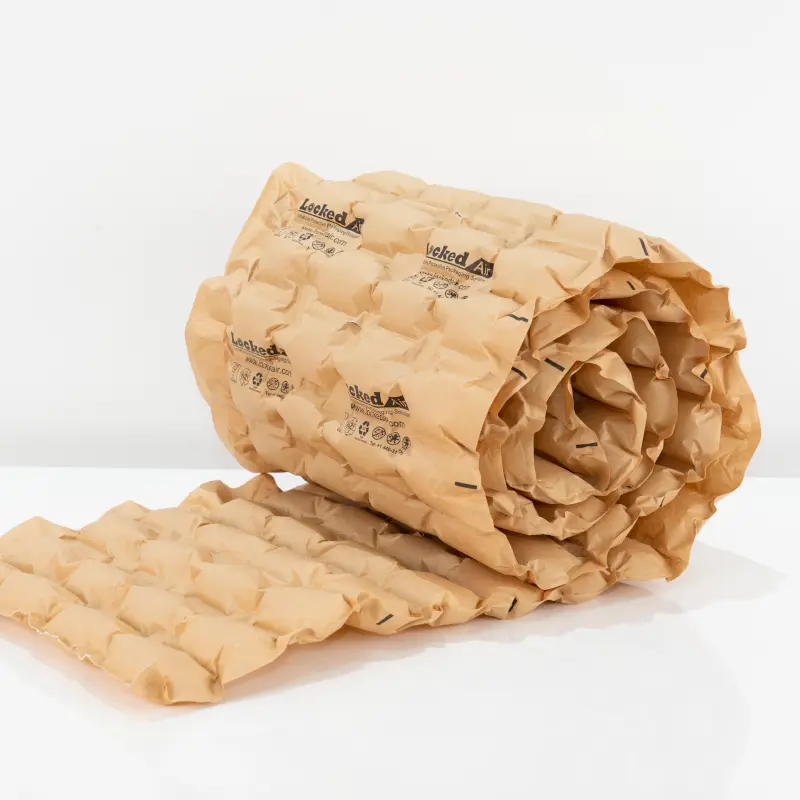

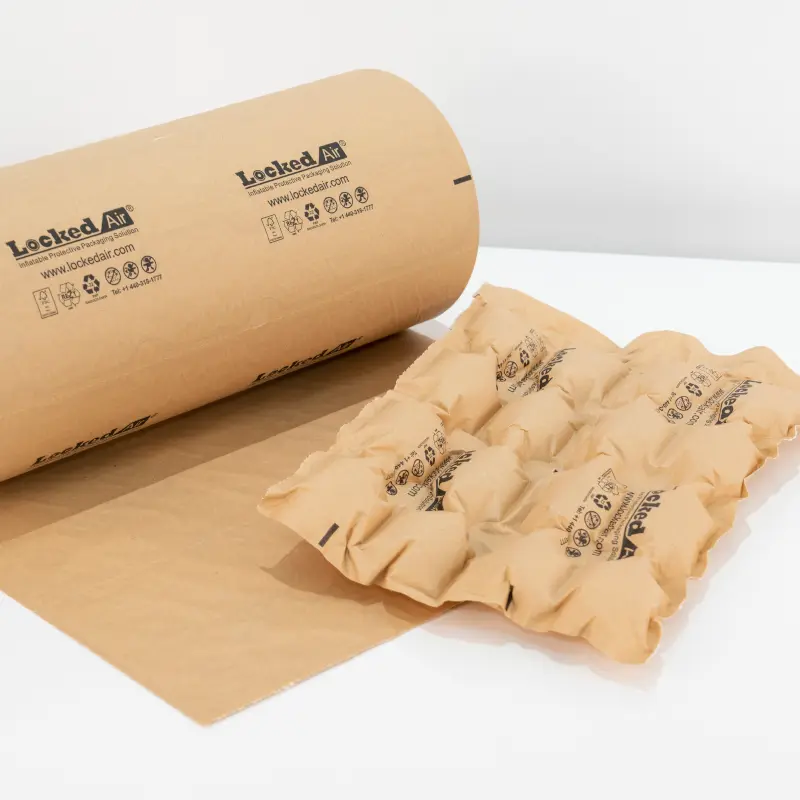

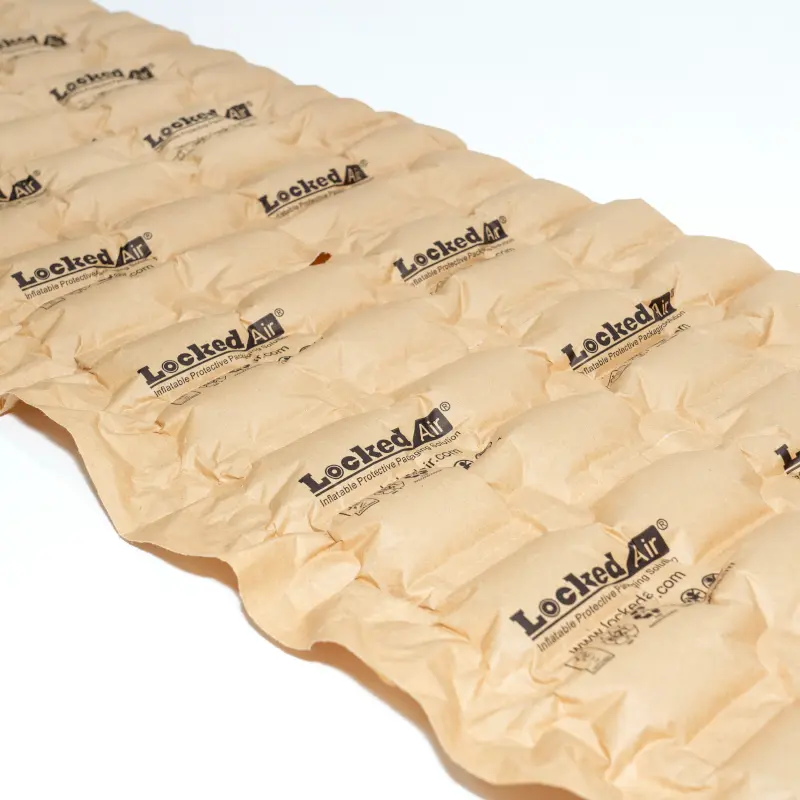

Paper Air Film: une solution d'amortissement durable fabriquée à partir de
Papier recyclé et une couche compostable, conçu pour protéger
Contre les chocs pendant le transport, disponible dans divers
Formes et tailles pour le commerce électronique.
Film à bulles PA/PE: un matériau polymère comportant
Une couche de barrière en nylon pour une protection améliorée.
Film à bulles en nylon: un film à haute résistance absorbant les chocs
Avec une excellente transparence, point de fusion élevé,
Et de bonnes propriétés de barrière d'oxygène qui ne
Libérer des produits chimiques nocifs lorsqu'ils sont brûlés.
| Series | Materiel M | Thickness T (um) | Width W(cm) | Perforation length L(cm) | Printing P | Film Unit | Film Length/Unit (m) | Roll or case/pallet | Pallet size (mm) |
| MF | H, DH | 17 | 40 | 450 | 112 | 1100*1100 | |||
| H, DH | 20 | 40 | See details in below chart | L: Locked air C: Customized | Roll | 450 | 112 | ||
| H, DH | 20 | 60 | 300 | 108 | |||||
| H, DH | 20 | 80 | 150 | 128 | |||||
| L, DL | 25 | 40 | 450 | 112 | |||||
| A | 26 | 40 | 450 | 112 | |||||
| A | 26 | 60 | 220 | 108 | |||||
| A | 26 | 80 | 110 | 128 | |||||
| A | 35 | 40 | 320 | 112 | |||||
| A | 35 | 60 | 160 | 108 | |||||
| A | 35 | 80 | 80 | 128 |
* MF:Refer to below table for letter in

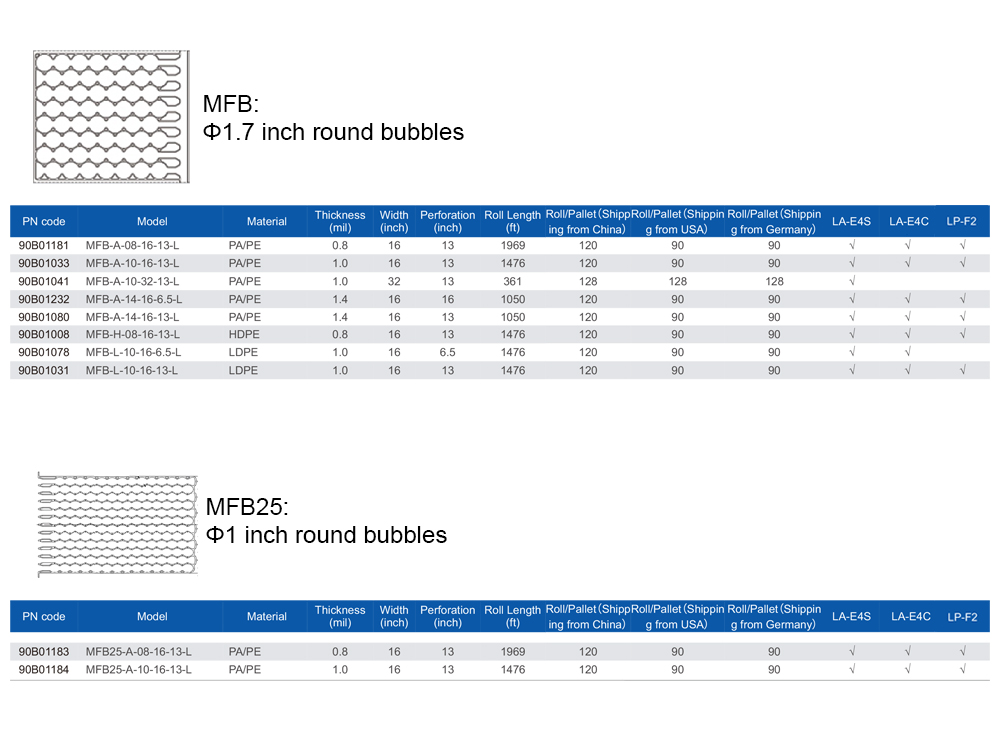

| MF code | A | B | C | D |

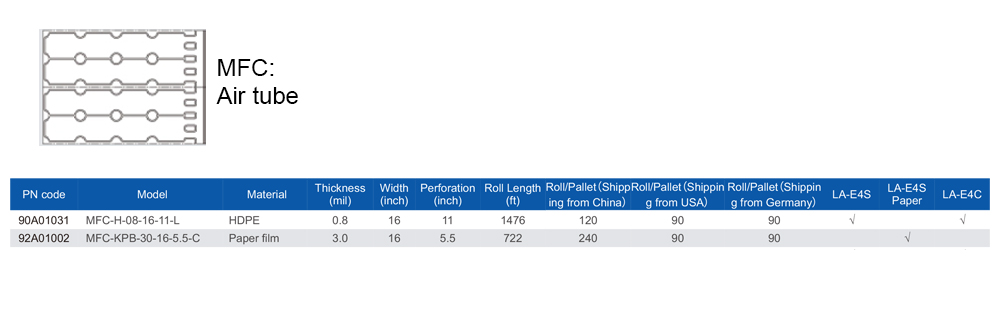

| Specification | Air tube | ∅43mm round bubbles | 60mm*88mm bubbles | ∅58mm round bubbles |
| Pattern |   |  |  |  |
| Perforation Length(cm) | 33 | 33, 16.5 | 14 | 16 |
| MF code | E | F | G | H |

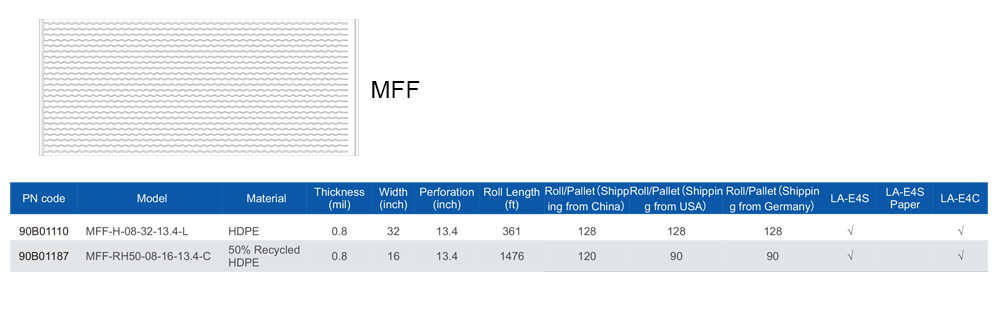

| Specification | 130mm*175mm bubbles | Tiny bubbles | ∅15mm round bubbles | 40mm heart shape |
| Pattern |  |  |  |  |
| Perforation Length(cm) | 14.6 | 34 | 33 | 33 |
LockedAir PA/PE air bubble film is polymer material with nylon barrier. The air bubble bag is stronger tensile strength, high-temperature resistance, and more friction resistance than standard films.
Nylon air bubble film can be inflated with LockedAir air cushion machine. The air bubble pouch burns without releasing harmful chemicals to the atmosphere. With great shock absorption and cushioning effect, the air bubble packaging bag is a good choice when high mechanical strength, high melting point, transparency, and good oxygen barrier is required during packing.
Shock Absorption:
Air bubble bags act as a resilient shield for electrical appliances, cushioning them against the jolts and bumps encountered during shipping and handling. This is crucial for safeguarding delicate internal components.
Customized Fit:
These air bubble films are adaptable, allowing for tailored packaging solutions. Whether it's a sleek laptop or a bulkier appliance, air bubble bags can be molded to provide a snug fit, reducing the risk of movement during transit.
Insulation from Elements:
The insulating properties of air filled bags for packaging protect electrical devices from temperature extremes. This is particularly important for items sensitive to temperature variations, ensuring they arrive in pristine condition.
Anti-Static Options:
Specialized anti-static variants prevent electrostatic discharge, shielding sensitive electronic devices from potential damage caused by static electricity.
Shock and Vibration Protection:
Air bubble films are good at absorbing shock and vibration, providing an effective barrier for delicate ceramics and preventing hazards in transit.
Scratch Prevention:
nature of air bubble films protects the ceramic from scratches,
Moisture Resistance:
For ceramics that are susceptible to moisture damage, air bubble films with moisture-resistant materials provide an additional layer of defense against potential hazards during transportation.
.jpg "2024_air_bubble_film_details__(1).jpg")
.jpg "2024_air_bubble_film_details__(2).jpg")
.jpg "2024_air_bubble_film_details__(3).jpg")
.jpg "2024_air_bubble_film_details__(4).jpg")
.jpg "2024_air_bubble_film_details__(5).jpg")
.jpg "2024_air_bubble_film_details__(6).jpg")
.jpg "2024_air_bubble_film_details__(7).jpg")
.jpg "2024_air_bubble_film_details__(8).jpg")
.jpg "2024_air_bubble_film_details__(9).jpg")
